Second To Last Step In Building 3 Edison Lamps

Leave a comment

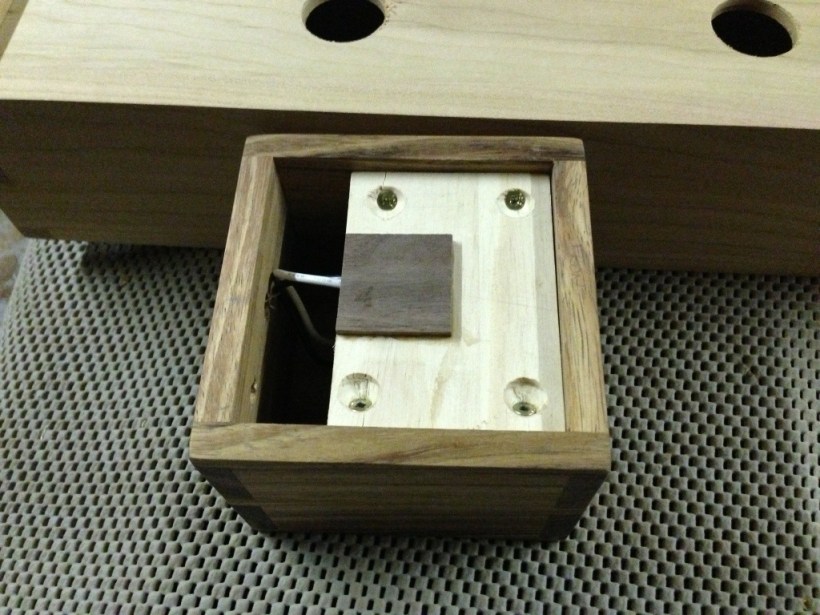

Well it isn’t really the second to last step in building an Edison lamp, but photos of the final wiring steps are (possibly) less interesting than these photos of finalizing the fit of the lamps. The photos below show the inner components of the lamps. The close-up shows the bottom side of the single bulb koa Edison lamp. I used a different style socket in this lamp and as a result I had to reroute the wiring. Normally I can keep all of the wiring above the wooden support, but in this case the wiring needed to be routed through the nipple. To prevent the wiring from extending past the base of the lamp I glued a thin piece of walnut scrap where the wires come through the bottom. Although the base is screwed into the box in this photo, I will need to remove it before applying the final finish. The second photo shows the five sockets for the 5 bulb cherry lamp. Much like the koa version, I established the final fit by screwing it into place before moving to the finishing steps. The next post will include final photos of the finished products.
